Application industry: 3C, automotive, aerospace, etc.
Application materials: non-ferrous metals such as aluminum, magnesium, titanium, silicon; fiber materials, insulating materials, plastics, composite materials, etc.
PCD universal milling cutter, suitable for processing aluminum and aluminum alloys, copper and copper alloys and other non-ferrous metals, glass fiber and metal composite materials, glass, engineering ceramics, engineering plastics, and milling of materials such as stone and wood.
Suitable for high-efficiency Plunge milling, side milling, slot milling, contour milling, and spiral interpolation milling.
Compared with traditional coated tools, under higher cutting parameters, the process is more reliable and the cutting edge life is longer. Provide tool customization and grinding services.

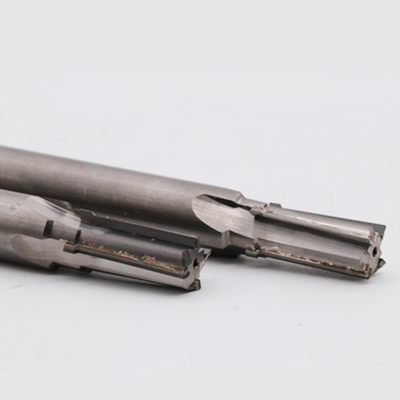

PCD/PCBN milling cutters features
▲The cutting edge adopts laser technology, the cutting edge is sharp, and the cutting is light and suitable for high-speed occasions.
▲ PCD of medium grain size has both abrasion resistance and chipping resistance, and excellent overall performance.
▲Diameters of the same specification, different cutting edge lengths.
▲The cutting edge over-center design can be used for axial feed milling similar to drilling.
▲Optimize the groove shape to achieve a higher dynamic balance level.
▲The small R angle and chamfering of the cutting edge effectively increase the durability of the tool.
PCD/PCBN milling cutter specifications
Model | DC(mm) | APMX(mm) | DMM(mm) | LS(mm) | LCF(mm) | LF(mm) | ZEFP | GAMP(°) | Shank material |
0303E | 3 | 3 | 6 | 37 | 10 | 50 | 1 | 0 | CARBIDE |
0403W | 4 | 3 | 6 | 37 | 10 | 50 | 1 | 0 | CARBIDE |
0504W | 5 | 4 | 6 | 37 | 10 | 50 | 1 | 0 | CARBIDE |
Especially suitable for high-efficiency milling of composite materials with the same specification and different cutting edge lengths
Model | DC(mm) | APMX(mm) | DMM(mm) | LS(mm) | LCF(mm) | LF(mm) | ZEFP | GAMP(°) | Shank material |
0610W | 6 | 10 | 6 | 37 | 20 | 63 | 2 | 0/3 | CARBIDE |
0615W | 6 | 15 | 6 | 37 | 20 | 63 | 2 | 0/3 | CARBIDE |
0815W | 8 | 15 | 8 | 37 | 20 | 63 | 2 | 0/3 | CARBIDE |
0820W | 8 | 20 | 8 | 37 | 30 | 73 | 2 | 0/3 | CARBIDE |
1015W | 10 | 15 | 10 | 41 | 20 | 73 | 2 | 0/3
| CARBIDE |
1020W | 10 | 20 | 10 | 41 | 30 | 80 | 2 | 0/3 | CARBIDE |
1215W | 12 | 15 | 12 | 46 | 20 | 90 | 2 | 0/3 | CARBIDE |
1220W | 12 | 20 | 12 | 46 | 30 | 90 | 2 | 0/3 | CARBIDE |
1615W | 16 | 15 | 16 | 49 | 20 | 100 | 2 | 0/3 | |
1620W | 16 | 20 | 16 | 49 | 30 | 100 | 2 | 0/3 |
