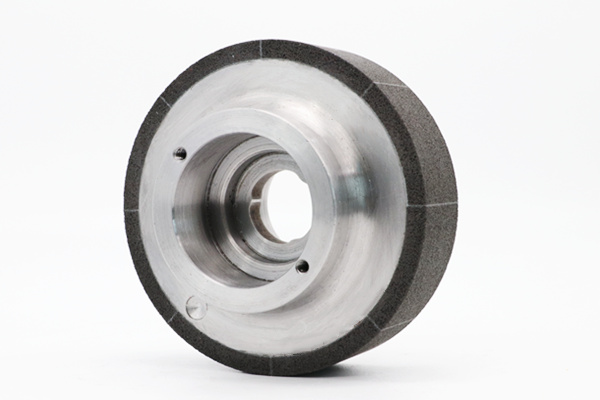

Vitrified bond CBN Grinding Wheel for camshaft

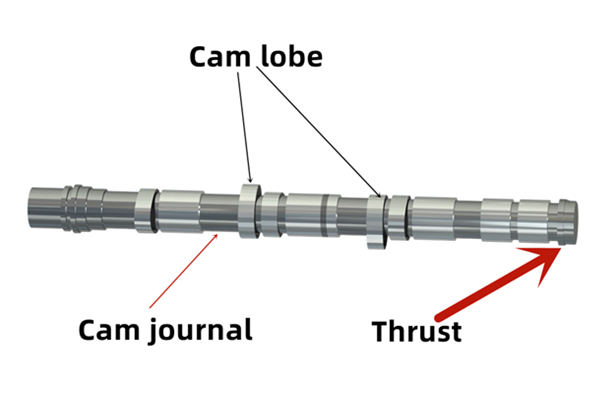

Grinding the cam lobes, thrust, journal,end face
Wheel speed ： 80m/s-160m/s
Materials of Camshaft: Steels,Sintered metals, Chilled cast iron, Forged cast iron
CNC Cam Grinders： Toyoda, Schaudt, Landis, Junker, etc...

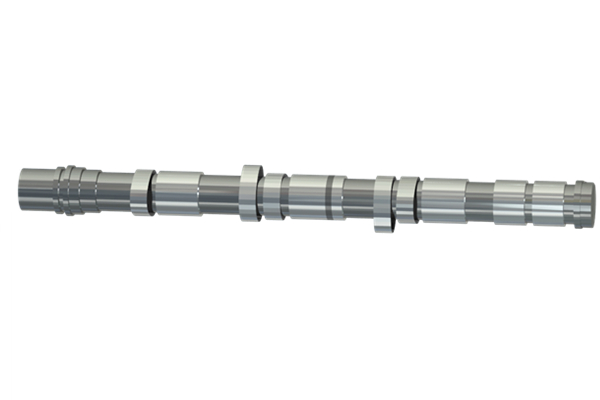

Camshaft
Camshaft is mainly used to control the opening and closing timing of the intake and exhaust valves in the engine. Camshaft pushes the rocker arm or push rod through the raised part (cam) generated by rotation, thereby accurately controlling the cylinder to inhale the combustible mixture and discharge the exhaust gas, ensuring the normal operation of the engine and achieving optimal performance.
Vitrified bond CBN Grinding Wheel is suitable for high-efficient heavy grinding of camshaft of automobile parts.
Application of vitrified CBN grinding wheel
* Camshaft lobe precision grinding
* Crankpin grinding
* Main journal grinding
* Flange neck grinding

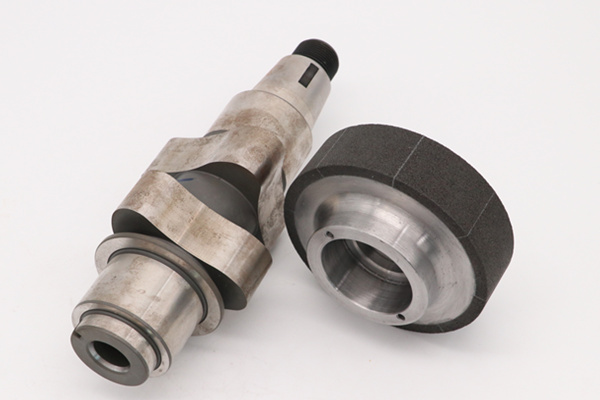

* Thrust face griding
* End face grinding
* Excellent cutting ability;
* Reduced burns and crack, less heat and jam generated in grinding
* Easy control of the precision and good surface quality
* Easy dressing
-LANDIS: LT1, LT2
-SCHAUDT: CF41, CF61, ZEUSMX, ZX
-NAXOS: NAXOS-UNION, P310*1250, Gf70
-JUNKER: JUCAM5002/10, JUCAM500, JUCRANK5000,6000
-TOYODA: GCS63, GL5P-63, GL6P-100, GCH120B, GC32M-63, GCH63B, GL63M-T
* Vit CBN Grinding Wheel for Camshaft Grinding
Model / Size | D355xID152.4*T15 Vit CBN Grinding Wheel for Camshaft |
Grain Size | #80/100 |
Camshaft Grinding Machine | PAlAMRY |
Grinding Machine Speed | 2500 r.p.m. |
Workpiece Hardness | HRC 55-60 |
Wheel speed (m/s) | 50m/s |
Camshaft Speed | 0~30 r.p.m. |
Grinding allowance | 0.5mm-1mm |
Cooling Liquid | Oil-water mixture |
* Double Ends Vit CBN Wheel for Camshaft Grinding

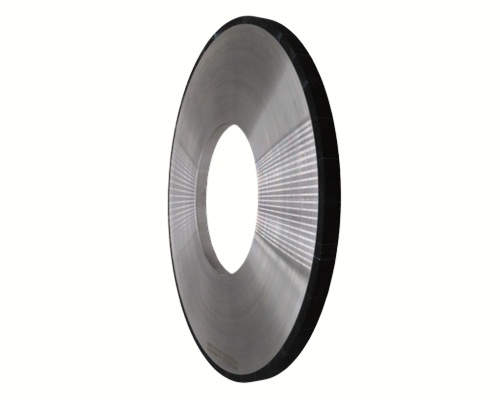

Model/ Size | 120*15*66*（21+17) Double ends vitrified bond CBN grinding wheel | |
Grinding Machine | Applicable Grinding Machine | Toyoda (JKT） |
Workpiece | Workpiece | Cam lobes of camshaft |
Workpiece Material | GCr15 | |
Hardness of grinding layer | HRC58-62 | |
Grinding allowance | Diameter: 1.2mm | |
Grinding Parameter | Wheel speed (m/s) | 72m/s |
Roughness after grinding | Ra≤0.64 | |
Grinding time | 66" | |
Dressing Parameter | Dressing Tool | Sintering diamond roller |
Cooling Liquid |
| oil cooling |
Grinding Wheel Life |
| grind about 8750 pieces |

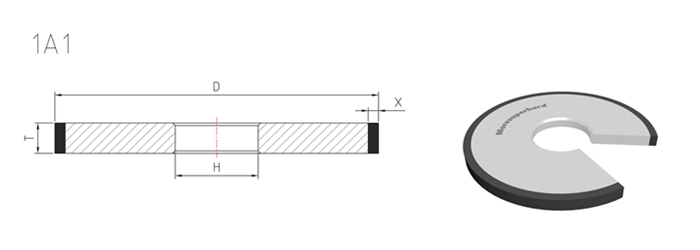

Specification of Vitrified CBN wheel for camshaft
Type | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 150 | 6 | 32 | 3 5 |
1A1 | 200 | 10 | 32 | 3 5 |
1A1 | 250 | 10 | 75,152.4 | 3 5 |
1A1 | 300 | 12 | 127,152.4 | 3 5 |
1A1 | 350 | 15 | 100, 152.4 | 3 5 |
1A1 | 400 | 14 | 100 | 3 5 8 |
1A1 | 450 | 15 | 100 | 3 5 8 |
