Electroplated diamond and CBN tools are used for surface grinding ,internal grinding, slot grinding and profile grinding . Such as ceramics, glass, tungsten Carbide, ferrite ,chilled cast iron, founded alloy steel, titanium alloy, etc

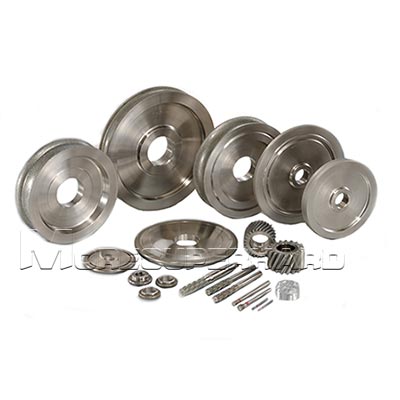

Electroplated diamond and Cubic Boron Nitride (CBN) tools are made up of a basic single layer or multi-layers (depending on application) that are bonded to the tool surface using a nickel matrix. The product can be made with various shapes and they are suitable for special complicated profile, surface grinding ,Internal grinding, Slot grinding,Profile grinding and others form grinding.
| diamond tools for non - ferrous industry | CBN tools for metallic materials industry |
|
* Carbide (grinding green and sintered tungsten carbide) * Ceramic (grinding ceramics like SIC, AJO,ZrO, etc) * Automotive (brake liners and cutting re-enforced rubber mouldings) * Pharmaceutical (grinding factitious knee joint) * Dental (profiling rubber bonded grinding pins) * Ferrite (grinding magnetic parts) * Chemical (grinding laboratory glass) * Graphite (grinding graphite parts) * Glass (grinding tubes, automotive components) * Fiberglass ,Plastics and Electronic components, etc |
* High-speed tool steels * Die steel * Hardened carbon steels * Hardened stainless steels * Alloy steels,Titanium Alloy * Aerospace alloys * Abrasion resistant ferrous materials, etc |
Electroplated CBN wheels are used for woodturning tools sharpening. Compare with traditional grinding wheels, our CBN wheels have the cutting fast and high speed feed grinding, will not cause rough surface and burn problems, leaves fine finish on tool bevel and don't need any dressing,etc
| Diameter: 6 inch, 8 inch and 10 inch | Thickness :1 inch, 1.5 inch and 2 inch | Arbor hole :1/2 inch, 5/8 inch, 1-1/4 inch |
| Radius edge: 1/4 inch | Grain Size: 80#, 180#, 220#, 350#, 600#, 800#, 1200# | Applicable grinder: Bench grinder |
No dressing procedure necessary,Body can be re-plated several times
High geometric and proportion precision,Complicated forming
retain their original shape and dimensions throughout their working life
Simple electroplated process, less investment convenient manufacturing
Excellent surface roughness, high grinding efficiency , long tool life
free-faster cutting, no dressing, less heating due to the diamond particles protruding from the surface.
