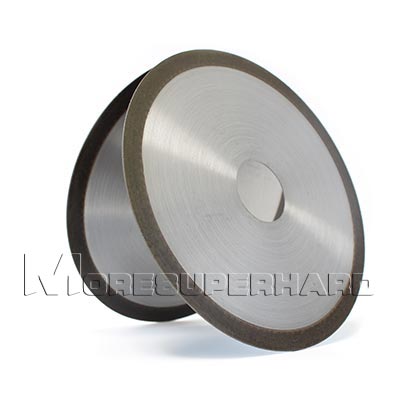

Size: 155D * 31.75H * 1T * 10X
Type: 1A1R resin diamond cutting disc
Application: cutting mono crystalline and polycrystalline silicon, sapphire,quartz, specialty glasses, and a variety of other hard compounds and ceramics
Related Products
Metal Diamond Cutting Wheel
Electroplated Diamond Cutting Disc
Vacuum Brazed Diamond Disc
Diamond Dicing Blade
Resin bond diamond cutting wheels (dicing blades) with the characteristic of vertical consumption can efficiently reduce the occurrence of grain deformation and improve the cutting quality and efficiency on hard and brittle materials.
* Improve the cutting quality and efficiency
* Chip free cutting, Cuts faster
* Good surface finish
Hard and Brittle Materials. Such as Ceramics, Optical Glass, Quartz Tubing Rods, Splitter, IR Filter, QFN, Carbide, Ultra Hard Steels and Metals .Resin Bond is the softest of all the bonds, used in applications that require a smooth surface finish.
|
|
|
| OD (mm) | 50 - 200 mm |
| Grit Size | 200 - 5000 # |
| Thickness (mm) | 0.1 - 2.0 mm (Based on diamond grit size) |
| Other size can be made according to customers requirements.Email: [email protected] | |
We can also supply the following types: 1A1 1L1 14A1 1FF1 1F1 1EE1V 1V9 1A6Q 1A1R 1E6Q 14E6Q 14EE1 14E1 1DD1 4B1 1A8 etc
Semiconductor Industry Solutions
PCD & PCBN Tools Grinding Industry
Diamond Cutting Bruting Polishing
Add: No.171 Zhongyuan Rd, Zhongyuan District, Zhengzhou, 450001, Henan, China
Tel: +86-371-86545906
Phone / Whats App: +86 18339903057
E-mail: [email protected]
1A1R diamond and CBN cutting wheels

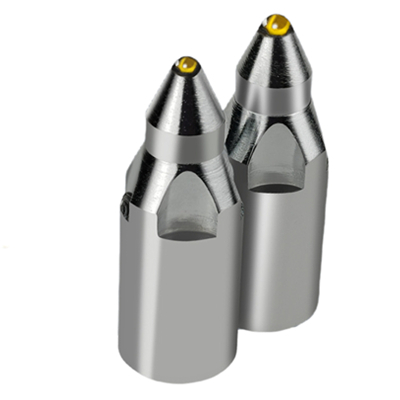

Rockwell Diamond Indenter For Hardness Tester
