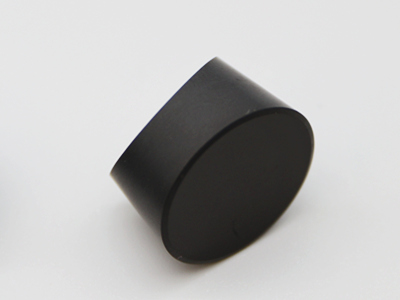

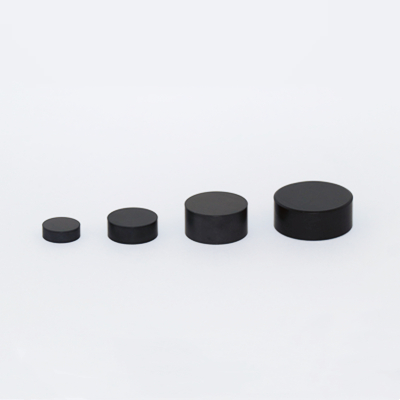

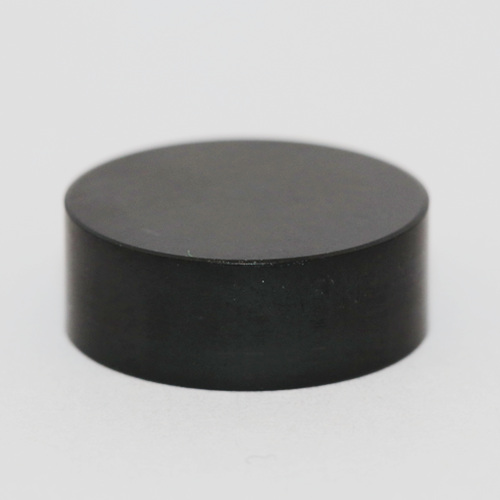

Model: RCMN, RCGX, RNMN, SNMN

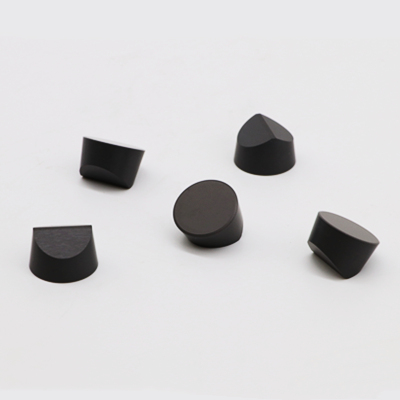

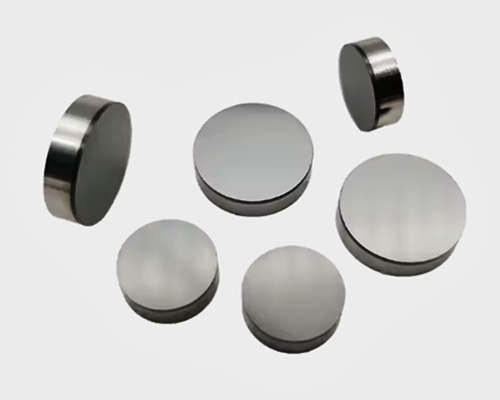

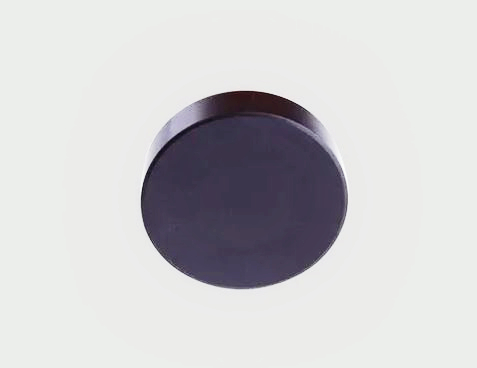

PCBN external turning insert for roll
High speed cutting, long service life
Application of PCBN insert :

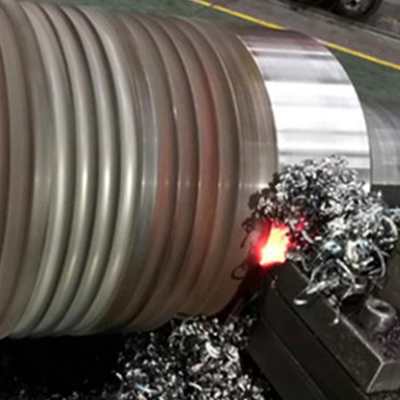

PCBN insert for roller external turning are used to process roller of various materials, including hardened steel, grey cast iron,powder metallurgy work-piece, thermal spray coating work-piece and others.
The PCBN insert and roller tool holder can realize dry cutting without cutting fluid, so they can avoid environmental pollution,high processing precision and a long service life.

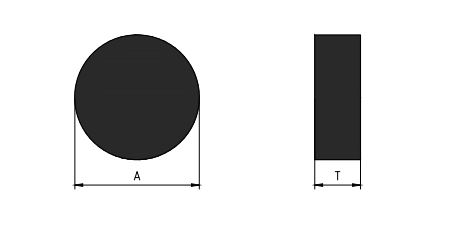

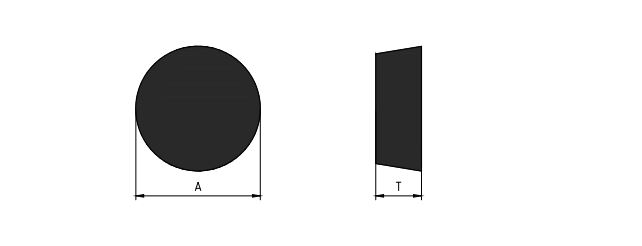

Type | No. | Dimension | |||
A | T | r | |||

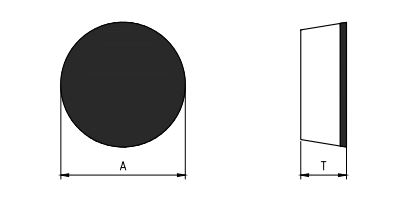

 |  | RCMN0904 | 9.525 | 4.76 | ---- |
RCMNI206 | 12.7 | 6.35 | ---- | ||
RCMN1507 | 15.875 | 7.94 | ---- | ||
RCMNI907 | 19.05 | 7.94 | ---- | ||
 |  | RCGX060500 | 9.525 | 3.97 | ---- |
RCGX120700 | 10 | 3.97 | ---- | ||
RCGX151000 | 12.7 | 3.97 | ---- | ||
RCGX191000 | 13 | 3.97 | ---- | ||

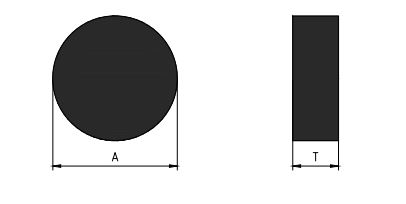

 |  | RNMNO904 | 9.525 | 4.76 | ---- |
RNMN1206 | 12.7 | 6.35 | ---- | ||
RNMN1507 | 15.875 | 7.94 | ---- | ||
RNMN1907 | 19.05 | 7.94 | ---- | ||

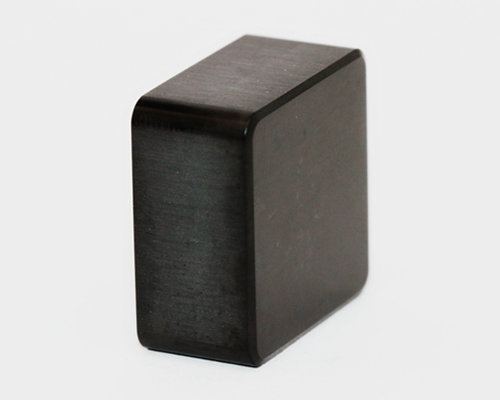

 |  | SNMN120408 | 9.525 | 3.97 | ---- |
SNMN120612 | 10 | 3.97 | ---- | ||
SNMN150720 | 12.7 | 3.97 | ---- | ||
SNMN190720 | 13 | 3.97 | ---- | ||

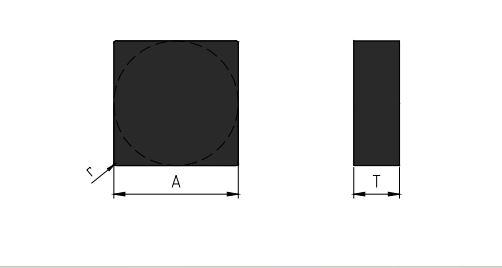

 |  | SNMN120408 | 12.7 | 4.76 | 0.8 |
SNMN120612 | 12.7 | 6.35 | 1.2 | ||
SNMNI50720 | 15.875 | 7.94 | 2.0 | ||
SNMNI90720 | 19.05 | 7.94 | 2.0 | ||
