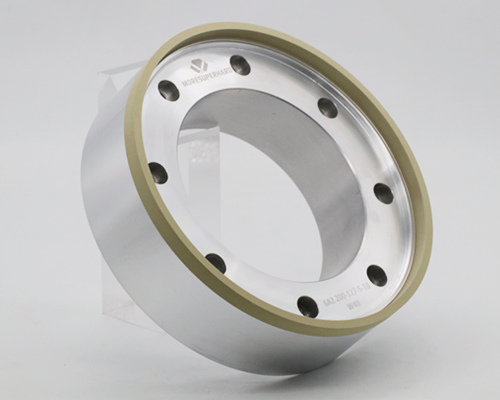

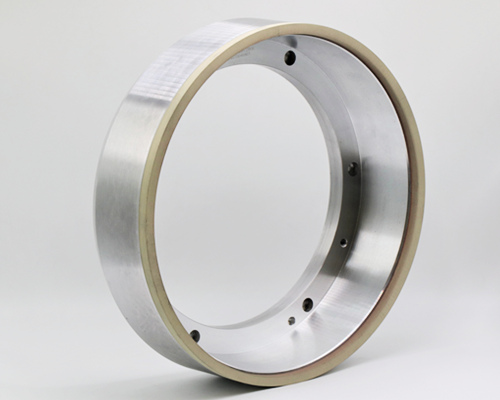

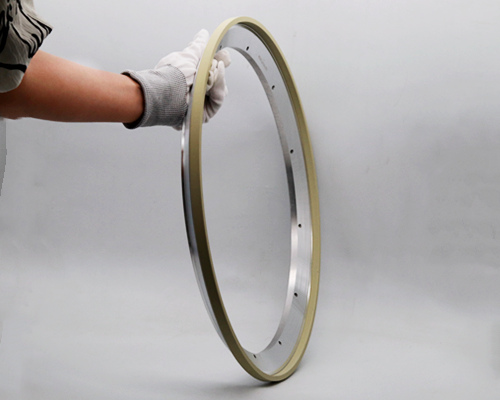

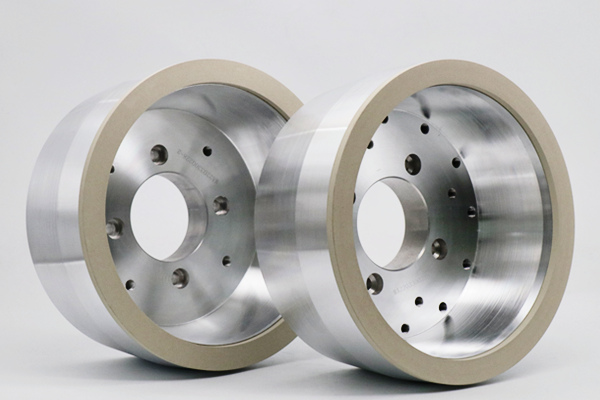

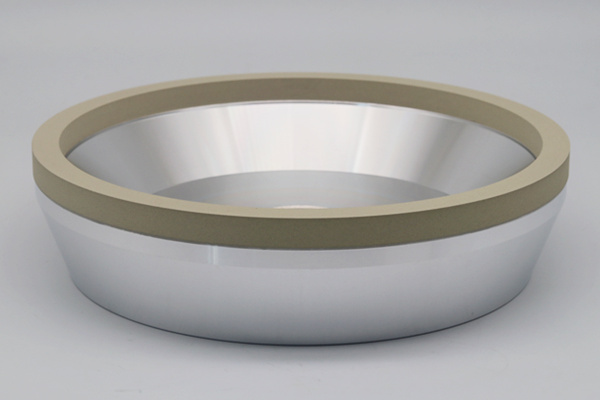

Vitrified diamond peripheral grinding wheels
For indexable inserts grinding:tungsten carbide inserts, ceramic inserts, Cermet, CBN inserts
Match machine: EWAG, AGATHON, WENDT,WAIDA

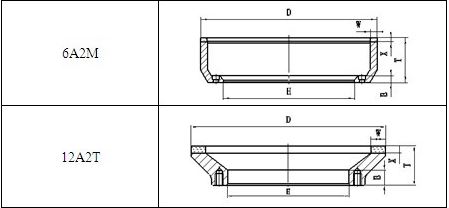

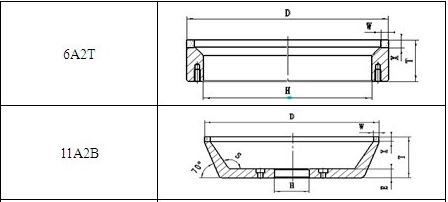

Shape: 6A2T, 6A2H, 6A2M,11A2B,12A2T
Peripheral Diamond Grinding wheels for indexable inserts, must be of a high level of geometrical accuracy, with ability of significant material removal. We are able to produce various types wheels to suit all popular machines, such as WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.
Peripheral diamond grinding wheels is mainly used for precise edge grinding of indexable inserts, tungsten carbide inserts, ceramic inserts, CBN inserts.
Materials of workpiece: tungsten carbide, ceramics, PCD/ PCBN inserts, etc.
* High durability, long life
* Good edge quality of inserts
* Good surface accuracy retention
* High stock removal efficiency
-Agathon:
400 Series: 400 PENTA, 400COMBI, 400SEMI, 400PERI.
350 Series: 350T B, 350COMBI
250 Series: PA250
-WENDT:
400 Series: WAC715, WAC735
350 Series: WAM336
WAIDA: AP460E
Model | Suitable Machine | D(mm) | H(mm) | W(mm) | T(mm) | X(mm) |
WAIDA: AP460E | 200 | 60 | 6,8,10,12 | 45 | 6 | |
Wendt:400 Series | 400 | 336 | 6,8,10,12,15 | 39 | 6 | |
Agathon:350 Series | 350 | 200 | 6,8,10,12,15 | 27 | 6 | |
Agathon:400 Series | 400 | 340 | 6,8,10,12,15 | 28 | 6 | |
6A2H | EWAG WS Series Coborn | 150 | 40 | 4 6 10 15 20 | 40 | 5 6 8 10 |
2A2T | WENDT WCD | 350 | 310 | 5 10 17.5 | 45 | 6 |
Other size can be produced according to customers’ requirement | ||||||
