Automotive parts are typically made from materials that balance weight, strength, and wear resistance — including cast iron, hardened steel, aluminum alloys, titanium alloys, and composites.

In recent years, advances in materials, coatings, and tool design — including diamond (PCD), cubic boron nitride (CBN), and carbide tools — have transformed automotive part machining into a highly efficient and precise process.

Each material presents its own machining challenges:

-Cast Iron: excellent machinability but abrasive, causing tool wear.

-Aluminum Alloys: soft and sticky, requiring sharp cutting edges and anti-adhesive coatings.

-Hardened Steel: extremely hard, demanding superabrasive tools like CBN.

-Composites: require diamond tools for smooth, burr-free cutting.

Automotive machining involves multiple processes such as:

-Turning (shafts, pistons, hubs)

-Milling (engine blocks, cylinder heads)

-Drilling and Reaming (oil holes, bearing seats)

-Grinding and Honing (surface finishing)

-Boring (engine cylinders, valve seats)

Each operation requires a dedicated cutting tool optimized for the part material and geometry.

Tool Requirements:

(1)High Hardness and Wear Resistance

Due to the diverse range of materials used in automotive parts processing, primarily cast iron, steel, and aluminum alloys, cutting tools must possess sufficient hardness and wear resistance to handle these diverse materials.

For example, in the machining of cast iron engine blocks, cutting tools are subject to high cutting forces and intense friction. Only tool materials with high hardness can ensure tool life and machining accuracy.

(2) Good Cutting Performance

Tools must possess optimal cutting edge geometry and cutting parameters to achieve efficient cutting. Selecting the appropriate tool type and corresponding geometry is essential for various machining techniques, such as milling, drilling, and boring.

For example, when milling flat surfaces, the shape, edge angle, and number of cutting edges of a face milling cutter all affect cutting efficiency and surface quality.

(3)High Precision and Stability

The high precision requirements of automotive parts dictate that cutting tools must be both precise and stable. Even slight tool wear or vibration during machining can cause dimensional deviations in the workpiece and reduce surface quality. Especially when processing critical engine components such as crankshafts and camshafts, high tool precision and stability are crucial factors in ensuring consistent engine performance.

(4)Quick tool changes and reliability

To meet the demands of high-efficiency automotive production, tools must offer features such as quick tool changes and minimal downtime.

At the same time, tool reliability is crucial to prevent tool breakage and other failures during machining, which could impact production schedules and product quality.

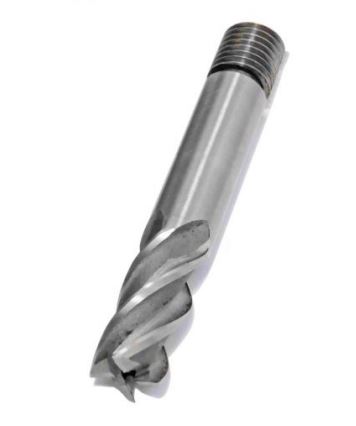

High-speed steel cutting tools

High-speed steel tools offer high strength and toughness, and can withstand significant impact during cutting. The cutting edge of these cutting tools can be sharpened to a very sharp edge, making them particularly suitable for fine machining of automotive parts requiring high surface quality but low material hardness, such as aluminum alloys.

However, high-speed steel tools have relatively poor heat resistance. During high-speed cutting, tool wear increases due to high temperatures, resulting in relatively low cutting speeds.

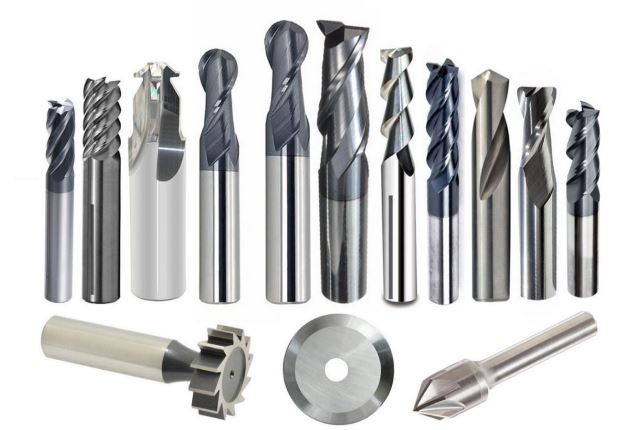

Carbide cutting tools

Carbide cutting tools are most commonly used in CNC machining of automotive parts. They offer high hardness, high wear resistance, and excellent heat resistance, enabling high cutting speeds.

Carbide tools are categorized into two main types: standard carbide and coated carbide. Coated carbide tools are manufactured by coating the tool surface with one or more layers of a thin film with specific properties, such as TiN, TiCN, or AlTiN, to further enhance tool hardness, wear resistance, and high-temperature resistance, enabling them to meet a wider range of machining material and process requirements.

For example, in the case of cast iron engine blocks, coated carbide tools can significantly improve machining efficiency and tool life.

Applications:

-Turning crankshafts and camshafts

-Milling aluminum housings and brackets

-Drilling engine block holes

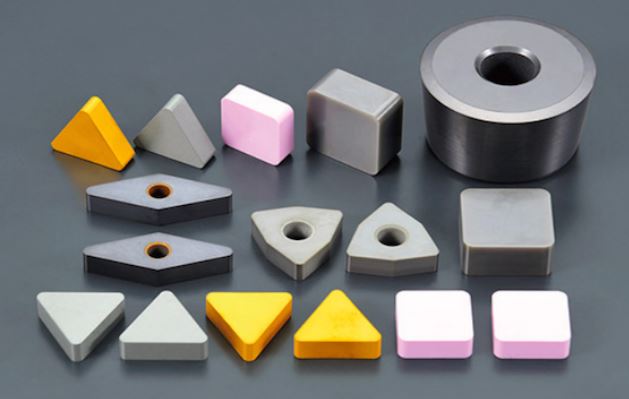

Ceramic cutting tools

Ceramic cutting tools are extremely hard, have excellent wear resistance, and possess heat resistance far exceeding that of high-speed steel and carbide tools. Ceramic tools are suitable for high-speed cutting of high-hardness materials, such as hardened steel and chilled cast iron.

In automotive parts processing, ceramic tools are often used to machine components requiring extremely high precision and surface quality, such as engine crankshaft finishing.

However, ceramic tools lack toughness and are prone to brittle fracture during cutting, placing higher demands on cutting parameters and machine tool stability.

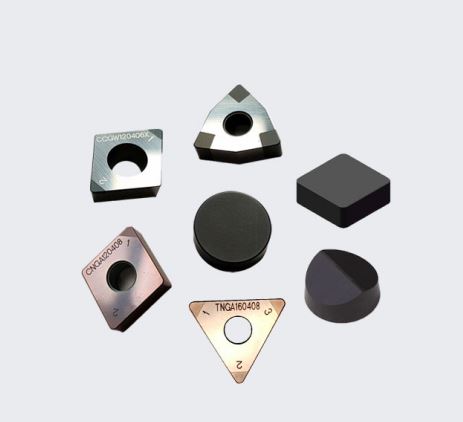

Cubic boron nitride (CBN) tools

CBN cutting tools possess a hardness second only to diamond and offer excellent wear and heat resistance.

CBN cutting tools are particularly suitable for processing materials with high hardness and wear resistance, such as hardened steel and high-alloy cast iron. CBN tools are often used in automotive engine machining for precision boring of engine cylinder block piston bores and milling of cast iron cylinder block and cylinder head assembly surfaces. They achieve high flatness on mating surfaces, improving engine airtightness, power, and fuel efficiency.

Applications of CBN cutting tools for auto parts:

-Finish turning of hardened steel gears and shafts

-Machining bearing races

-Hard turning as a substitute for grinding

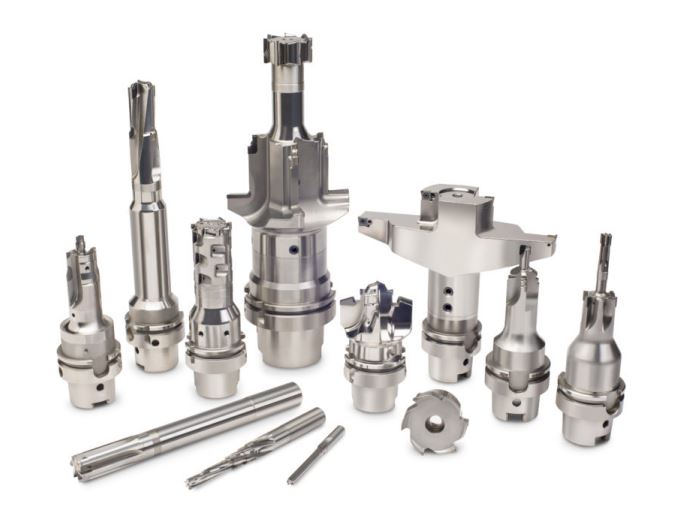

PCD cutting  tools

PCD tools offer exceptional hardness, strong wear resistance, excellent thermal conductivity, low friction coefficient, and can effectively reduce cutting forces and heat.

PCD tools are commonly used in machining aluminum alloys, copper alloys, and other non-ferrous metals. They excel in milling aluminum alloy cylinder blocks and heads for automotive engines, enabling high feed rates to improve machining efficiency and tool life. However, due to the chemical reaction between diamond and iron at high temperatures, PCD tools are not suitable for machining ferrous materials.

Applications of PCD cutting tools for auto parts:

-Cylinder head and block milling

-Brake disc and drum finishing

-Aluminum wheel machining

-Electric vehicle components (battery trays, motor housings)

Cutting Tools for Specific Auto Parts

Engine Block and Cylinder Head

Crankshaft and Camshaft

Transmission Gears

Brake Disc and Drum

 Aluminum Wheels and Suspension Components

Electric Vehicle Components
