Machining is the backbone of modern manufacturing industries. From automotive and aerospace to electronics and energy, the ability to shape, cut, and refine materials into precise components defines the quality and performance of end products. At the heart of machining lies one of the most critical elements: cutting tools. The choice of tool material directly influences machining efficiency, tool life, surface finish, and overall production costs.

Aong the wide range of tool materials developed over the years, Polycrystalline Diamond (PCD) and Cubic Boron Nitride (CBN) cutting tools have emerged as two of the most advanced solutions. They are not just alternatives to traditional carbides or ceramics but rather high-performance tools designed for the most demanding machining applications. Their ability to maintain hardness, resist wear, and deliver exceptional precision under extreme conditions has made them indispensable in industries that require both productivity and reliability.

This article explores the importance of cutting tools in machining, followed by a detailed study of PCD and CBN cutting tools, their properties, applications, and advantages.

The Importance of Cutting Tools in Machining

1. Role of Cutting Tools

Cutting tools are the primary interface between the machine and the workpiece. Their role extends beyond simply removing material; they dictate productivity, precision, and cost-effectiveness. The tool material must withstand high temperatures, pressures, and friction while maintaining its geometry to ensure dimensional accuracy and surface integrity.

2. Factors Influenced by Cutting Tools

Surface Finish: The sharpness and stability of the tool directly affect the quality of the machined surface.

Tool Life: Wear resistance determines how long the tool can function without replacement, impacting downtime and costs.

Machining Speed: Advanced cutting tools allow higher cutting speeds and feeds, thereby reducing cycle time.

Cost Efficiency: Longer tool life and reduced regrinding requirements lower overall production costs.

3. Evolution of Cutting Tool Materials

Traditional tools were made of high-speed steels (HSS), later replaced by carbides and ceramics for higher hardness and heat resistance. However, as industries demanded machining of harder, abrasive, and exotic materials, superhard tool materials like PCD and CBN were developed to push the limits of performance.

PCD Cutting Tools

1. What is PCD?

Polycrystalline Diamond (PCD) is a synthetic diamond material produced by sintering micron-sized diamond particles under high pressure and high temperature (HPHT). These particles are bonded with a metallic binder, typically cobalt, to form a dense structure of randomly oriented diamond crystals.

PCD combines the hardness and wear resistance of natural diamond with the toughness required for cutting tools. It is one of the hardest tool materials known, second only to natural single-crystal diamond.

2. Properties of PCD cutting tools

* Extreme Hardness: Provides exceptional wear resistance.

* High Thermal Conductivity: Helps dissipate heat away from the cutting zone.

* Low Friction Coefficient: Reduces cutting forces and prevents material adhesion.

* Chemically Stable: Excellent performance when cutting non-ferrous and abrasive materials.

3. Applications of PCD Tools

* PCD tools are primarily used for non-ferrous and non-metallic materials, including:

* Automotive Industry: Machining aluminum alloys (engine blocks, cylinder heads, transmission housings).

* Aerospace Industry: Cutting titanium alloys and composites reinforced with carbon or glass fibers.

* Electronics: Precision machining of silicon, ceramics, and synthetic sapphire.

Woodworking and Plastics: High wear resistance against abrasive materials like MDF, particle boards, and fiber-reinforced plastics.

4. Advantages of PCD Cutting Tools

-Exceptional Tool Life: PCD tools last 50–100 times longer than carbide tools when machining abrasive materials.

-High Productivity: Capable of very high cutting speeds.

-Superior Surface Finish: Produces mirror-like finishes, eliminating secondary polishing in many cases.

-Reduced Downtime: Fewer tool changes improve machine utilization.

CBN Cutting Tools

1. What is CBN?

Cubic Boron Nitride (CBN) is the second hardest material after diamond. Unlike diamond, however, it is chemically stable in contact with ferrous materials at high temperatures. This makes CBN the preferred tool material for machining hardened steels and cast irons—applications where diamond fails due to chemical wear.

CBN is typically available as polycrystalline CBN (PCBN), where CBN particles are sintered together with a binder phase (ceramic or metallic). The resulting tool material combines hardness, toughness, and thermal stability.

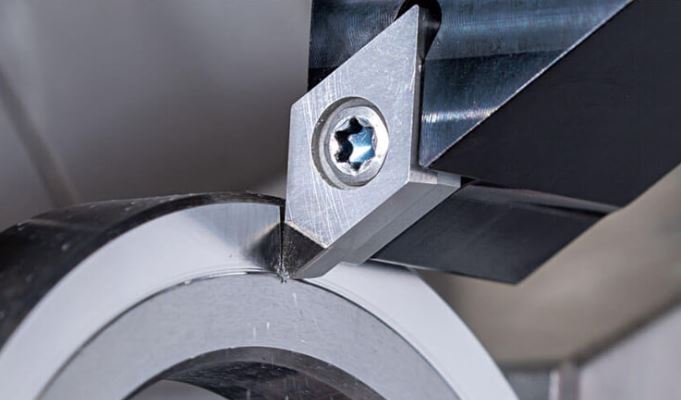

CBN tools dominate the machining of high-hardness ferrous metals. In automotive manufacturing, high-speed hard turning of hardened steel gears, bearings, and crankshafts previously relied on grinding, a cumbersome and inefficient process. The advent of CBN tools has transformed this situation. They can directly replace grinding, achieving "turning instead of grinding," significantly improving machining efficiency while also offering comparable precision to grinding. Data shows that using CBN tools for hard turning of hardened steel gears can increase efficiency several times while significantly extending tool life.

In the mold industry, CBN tools, with their high-temperature resistance and wear resistance, easily handle mold steels with a hardness of HRC 45 or higher, efficiently removing stock and ensuring surface quality. CBN tools can easily cut chilled cast iron rolls and high-chromium cast iron in heavy machinery, as well as high-temperature alloys (such as Inconel) in aerospace, demonstrating their powerful machining capabilities.

2. Properties of CBN cutting tools

* Hardness: Second only to diamond but more suitable for ferrous metals.

* High Hot Hardness: Retains cutting edge at temperatures exceeding 1000°C.

* Chemical Stability: Does not react with iron or steel at high temperatures.

* Abrasion Resistance: Performs well in continuous and interrupted cutting.

3. Applications of CBN Cutting Tools

CBN is ideal for hard and ferrous materials, including:

Automotive: Machining of hardened steel components (gears, shafts, bearings).

Tool & Die Industry: Cutting high-hardness tool steels and molds.

Aerospace: Machining superalloys like Inconel and heat-resistant steels.

Foundry: Processing cast irons, chilled irons, and wear-resistant alloys.

4. Advantages of CBN Cutting Tools

* Excellent Performance on Hardened Steels: Allows hard turning as an alternative to grinding.

* Increased Productivity: Capable of higher cutting speeds compared to ceramics.

* Dimensional Accuracy: Maintains tolerances under extreme conditions.

* Cost Savings: Reduces the need for secondary grinding and polishing.

PCD vs. CBN Cutting Tools

Challenges in Using PCD and CBN Tools

Despite their many advantages, PCD and CBN cutting tools come with challenges:

Cost: Initial tool cost is higher compared to carbide or ceramic tools.

Specialized Equipment: Often require rigid machines and stable clamping to avoid premature failure.

Regrinding/Resharpening: Limited compared to carbide tools and requires expertise.

However, when applied correctly, the overall cost savings in productivity, reduced downtime, and improved quality far outweigh the initial investment.

The development of PCD and CBN cutting tools represents a major leap forward in machining technology. They enable industries to process harder, more abrasive, and more complex materials at high speeds with exceptional precision.

PCD tools dominate applications involving aluminum, composites, ceramics, and non-ferrous materials, providing unmatched tool life and surface finish.

CBN tools are the gold standard for machining hardened steels, cast irons, and other ferrous alloys, offering performance that makes hard turning a practical alternative to grinding.

As industries continue to demand faster production cycles, tighter tolerances, and higher quality, the role of advanced cutting tools will only become more critical. Investing in PCD and CBN tools is not merely a choice for productivity—it is a necessity for staying competitive in modern manufacturing.
