In the world of grinding operations, maintaining the grinding wheel’s sharpness and geometry is critical for ensuring dimensional accuracy, surface finish, and overall productivity. Over time, a grinding wheel becomes dull and loaded with debris, which reduces its cutting efficiency. This is where diamond dressers come into play — tools used to restore the wheel’s sharpness by dressing and truing its surface.

Among various types of dressing tools, single-point and multi-point diamond dressers are widely used in precision grinding applications due to their accuracy, durability, and ability to handle a variety of abrasive wheels.

What Is a Diamond Dresser?

A diamond dresser is a tool used to true and dress grinding wheels — that is, to restore the wheel’s original shape (truing) and to expose fresh cutting edges (dressing).

Since diamond is the hardest natural material, it is ideal for cutting and conditioning abrasive wheels made from materials such as aluminum oxide, silicon carbide, cubic boron nitride (CBN), and diamond.

Functions of a Diaond Dresser

Truing: Restoring the wheel’s geometry, ensuring concentricity and accurate form.

Dressing: Removing dull grains and bonding material to expose fresh abrasive edges.

Opening: Creating porosity and proper chip space on the wheel’s surface.

Efficient dressing improves wheel sharpness, enhances cutting performance, reduces grinding forces, and ensures consistent surface finish on workpieces.

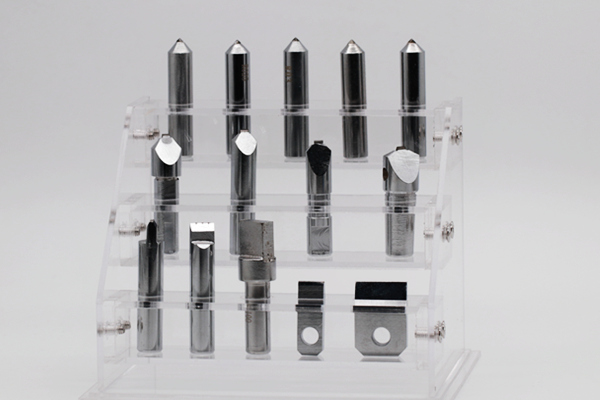

Types of Diamond Dressers

Diamond dressers come in several configurations depending on the dressing requirement, wheel size, and accuracy needed. The main types are:

1. Single-point diamond dresser

2. Multi-point diamond dresser

3. Impregnated diamond dresser

4. Rotary diamond dresser (rotating type)

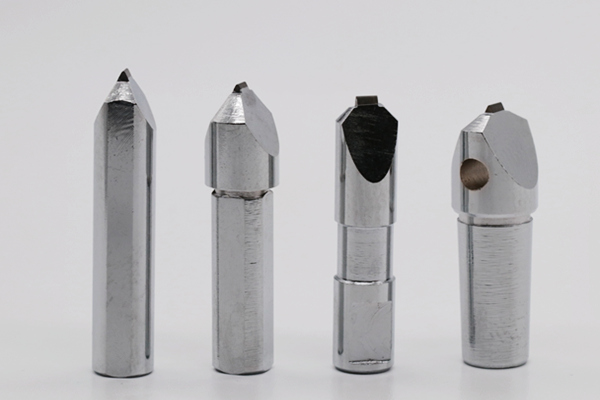

Single-Point Diamond Dresser

Construction and Design

A single-point diamond dresser consists of a single natural diamond crystal mounted in a metal shank at a specific angle (typically 10°–15° to the wheel surface). The diamond is usually embedded by brazing or sintering at the tool’s working end.

The orientation and quality of the diamond tip are critical — only a properly aligned, high-quality diamond can achieve precise dressing results.

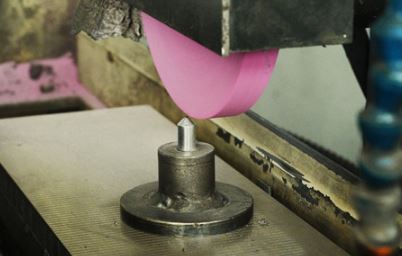

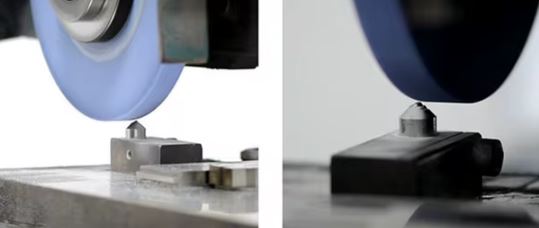

Working Principle

When the single diamond point contacts the rotating grinding wheel under controlled feed, it scrapes off a thin layer of abrasive material and bond, thereby renewing the wheel surface. The dresser is usually traversed slowly across the wheel face to ensure uniform dressing.

Key Features

Precision: Ideal for forming and profiling operations requiring high accuracy.

Sharp Cutting: The diamond point ensures efficient dressing with minimal pressure.

Versatility: Suitable for both vitrified and resin-bonded wheels.

Applications

-Cylindrical grinding

-Surface grinding

-Tool and cutter grinding

-Profile dressing for form grinding

Used widely in tool rooms, precision engineering, bearing manufacturing, and automotive components grinding.

Multi-Point Diamond Dresser

Construction and Design

A multi-point diamond dresser contains a cluster of small natural or synthetic diamonds mounted on the working face of the tool. The diamonds are randomly or evenly distributed in a sintered matrix or metallic bond (usually copper or steel).

These can appear as:

Cluster-type: Several diamonds in a compact head.

Blade-type: Multiple diamonds set along an edge.

Disc-type: Multiple diamonds distributed over a circular face.

Working Principle

Unlike a single diamond point, multiple diamond tips simultaneously contact the grinding wheel. Each diamond removes a small portion of material, which reduces the load per diamond and provides a more uniform and consistent dressing action.

The tool traverses across the wheel surface, and as the diamonds wear out, new ones are exposed automatically from the matrix.

Key Features

Multiple cutting edges

Self-renewing surface

High dressing efficiency

Stable dressing action

Applications

-High-production environments

-Large wheel dressing

-Rough dressing before fine finishing

-Centerless and surface grinding

-Steel and cast iron grinding wheels

Comparison Between Single and Multi-Point Diamond Dressers
