1.Sintered Diamond Cutting Disc
Diamond saw blades are used for cutting ceramic, stone, granite, tiles, concrete, reinforced concrete, marble, Cement-bonded fibre board, abrasive and asphalt on angle grinder
Advantages Of Sintered Diamond Cutting Disc
* Good cut quality without broken edges, even in extra-hard fine stone slabs and marble
* Segmented cooling slots for very clean and fine cuts
* The diamond cutting disc for the highest demands with regard to accurate, chip-free
* Flange for more stability and less vibration
* The low-cost diamond cutting disc that is a problem solver in hard materials
* The continuous turbo cutting rim allows for cutting without broken edges
* Sintered cutting rim

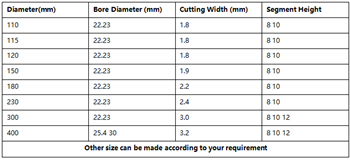

The Specifications of electroplated diamond cutting disc

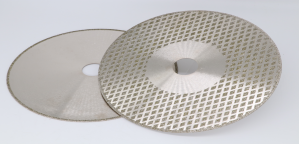

2.Electroplated Diamond Cutting Disc
Electroplated diamond saw baldes are usually be fixed on angle grinders, circular saws and handheld saws for Cutting and grinding marble, granite, thermosetting plastics, GRP, pre-sintered and pre-fired (green) materials, fiber glass, electro carbons, graphite, soft ferrites, PVC and pc boards, etc
Advantages Of Electroplated Diamond Cutting Disc
* The cutting effect is better than sintered small diamond saw blade and won't cause broken edge
* Very sharp cutting performance and generate minimum heat
*Continuous rim cutting discs provide smoother cutting on fiberglass, plastic, ceramic tiles
*Segmented rim cutting discs are more suitable for cutting marble, granite and abrasive materials
* Key hole” and “U” shape slots are common slot types of segmented rim

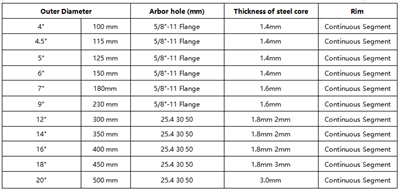

The Specifications of electroplated diamond cutting disc
3.Vacuum Brazed Diamond Cutting Wheel
Vacuum brazed saw blades have continuous type and segment type. They are used for cutting Marble, cast iron, Ceramics tiles, hard composite materials such as concrete with rebar, Metal processing, Fiber Glass and PVC pipe, etc
Advantages Of Vacuum Brazed Diamond Saw Blades
* Single Layer Of Fully Exposed Diamond Fused With Nickel At High Temperatures And Sharp Cutting
* Small cutting gap and less chipping
* Up To 40 Times Longer Life Time Than Resin Grinding Disc. the efficiency is improved by 100% for cutting FRP slab
* Higher Quality Process Than Sintered or Laser Welded Diamond Wheel. The efficiency is improved by 35% for cutting marble slab
* No Pollution, Low Noise ,Never Need Dressing

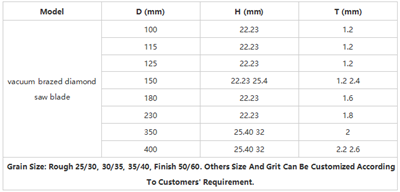

Specifications Of Vacuum Brazed Diamond Saw Blades
