Diamond dressing roll is a high performance dressing tool for precision grinding wheels, the geometry of which matches geometry of part to be ground to generate the desired form and wheel surface condition as template , offering high dressing precision , geometric accuracy , long wheel life and low cost.
Dressing rolls are divided into profile and form rolls depending on the type of abrasive layer profiling.
|

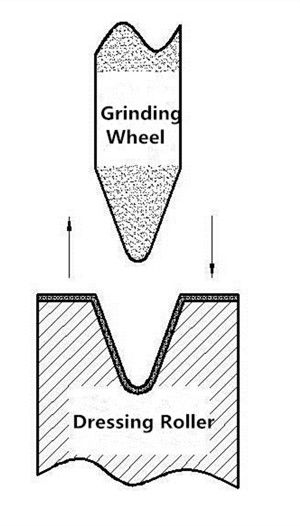

Diamond Profile Dressing Rolls |
|
• Profiling of the grinding wheel in only one operation using the plunge-cut dressing method
• Usually the profile of the roll corresponds precisely to that of the workpiece • Extreme accuracy, even with highly complex profile contours |
|
|

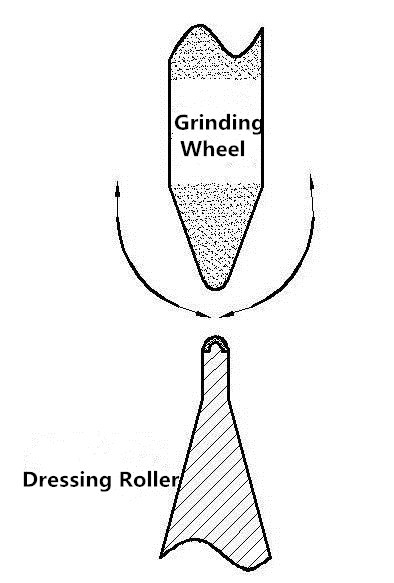

Diamond Form Dressing Rolls |
|
• Profiling of the grinding wheel along the desired contour by moving the diamond dressing roller
• The profile of the grinding wheel is created by a CNC controlled process that moves the rotating form roll along the target contour • Form rolls are not restricted to a specific workpiece but can be used flexibly |
More Superhard 's diamond dressing rolls have been widely used in gears, bearings, aerospace, weapons manufacturing, auto components, air conditioning compressors, tools, measuring tools and other industries.
Gears Industry
Automotive components industry
Bearings Industry
High- end rolls can be made to customer's specification.
Semiconductor Industry Solutions
PCD & PCBN Tools Grinding Industry
Diamond Cutting Bruting Polishing
