self-supported PCD die blanks is used for draw copper wire, aluminum wire, tungsten wire, molybdenum wire, stainless wire and coated steel wire.
Descriptions of self-supported PCD die blanks:

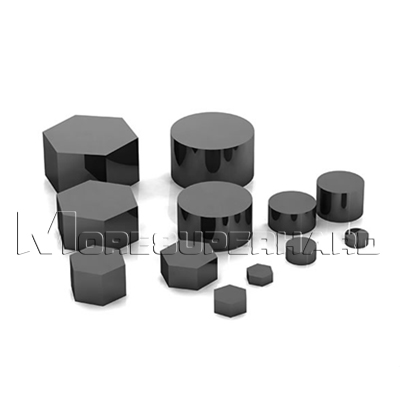

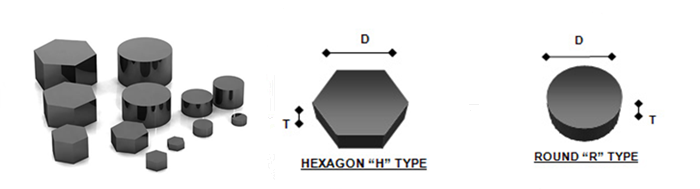

Self-Supported diamond die blanks includes self-supported PCD die blanks in Hexagonal shape and Round shape in various sizes. These blanks are suitable for various wire drawing applications especially where cost-cutting is required.
Features of Self-Supported PCD Die Blanks:
* Have a regular and compact micro structure
* Long service life
* Easy grinding, easy polishing and high smooth finish
Application of Self-Supported PCD Die Blanks:
our PCD die blanks is Mainly used for draw copper wire, aluminum wire, tungsten wire, molybdenum wire, stainless wire and coated steel wire.
Specifications of Self-Supported Diamond Die Blanks:
| ADDMA code | Product code | Diamond diameter (mm) | Diamond thickness (mm) | Maximum recommended hole size (mm) | Grain sizes available (um) |
| D6 | R2510 | 2.5 | 1.0 | 0.5 | 3,5,10,15,25 |
| D12 | R3215 | 3.2 | 1.5 | 1.0 | 3,5,10,15,25 |
| D15 | R5225 | 5.2 | 2.5 | 1.5 | 3,5,10,15,25 |
| D18 | R5235 | 5.2 | 3.5 | 2.0 | 3,5,10,15,25 |
| D21 | R8040 | 8.0 | 4.0 | 3.3 | 3,5,10,15,25 |
| D24 | R9853 | 9.8 | 5.3 | 4.6 | 3,5,10,15,25 |
| D27 | R13085 | 13.0 | 8.5 | 6.1 | 10,15,25 |
| D30 | R160120 | 16.0 | 12.0 | 7.6 | 10,15,25 |
