CBN Inserts for Carbide Rolls Machining

CBN Inserts for Carbide Rolls Machining

Due to its excellent properties, carbide rolls are widely used in the steel industry and their hardness is very high. For the machining of cemented carbide rolls, CBN/PCD Inserts can effectively replace the grinding process to improve production efficiency.

Alias: Solid CBN, CBN Inserts, Carbide Roll Machinin
Application: tungsten carbide roll machining
Details

Due to its excellent properties, carbide rolls are widely used in the steel industry and their hardness is very high. For the machining of cemented carbide rolls, CBN/PCD Inserts can effectively replace the grinding process to improve production efficiency.

Click on the video to view more product information


CBN Inserts for Carbide Rolls Machining2.jpg

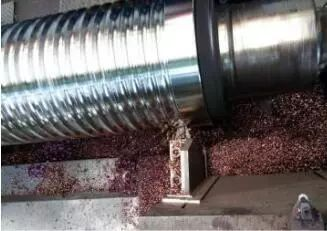

The case of CBN Inserts for carbide roll machining


cbn inserts machining

Workpiece

Roll(Dia230mm)

Processing location

cylindrical

Hardness of workpiece

HRC84.5-85

Code of CBN inserts

MCBN RNMN120400

Cutting parameters

Vc=25m/min ap=0.6mm Fr=1.02mm/r

Processing way

Dry grinding

CBN Material

CBN life

Result

More company CBN

> 5piece/blade

Normal wear and tear

Other company cutting tools

< 1piece/blade

edge breakage

Csse of CBN insert for machining infinitely chilled cast iron rolls

chilled cast iron rolls


Roller name

narrow strip steel roll

Roller hardness

HSD67

Tool model

solid CBN RNMN200800

Cutting parameters

Vc=56-76m/min, Fr=0.5mm/r, ap=2mm

Tool life

60min



Case of CBN inserts for machining grooving roll

grooving roll

Roller hardness

HSD90

Tool model

 Solid CBN RCMX120700

Cutting parameters

Fr=0.2mm/r, Vc=35m/min

Processing method

Dry cutting

Tool life

 25 grooves/blade (twice that of a certain brand of CBN blade)


Case of CBN inserts for machining carbide rolls

grooving roll

Roller hardness

HRC84.5-85

Processing part

outer circle

Selected blade

solid CBN RNMN120400

Cutting parameters

Vc=25m/min, Fr=1.02mm/r, ap=0.6mm

Comparative advantage

 The tool life of More Super Hard CBN material is 5 times that of an imported CBN blade


Dimensions of PCBN inserts for machining roller

Type   RCMX.png

                                                      Dimension

Standard Chamfer

L

ΦI.C

S

r

RCMX060400V

6.35

4.76

0.8

-

S01020

S02020

S03020

S05020

S10020

S20020

RCMX060500V

6.35

5.56

0.8

-

RCMX060600V

6.35

6.35

0.8

-

RCMX090700V

9.525

7.94

1

-

RCMX090700V

12.7

7.94

2

-

RCMX151000V

15.875

10

2

-

RCMX191000V

19.05

10

2

-

RCMX201200V

20

12

2

-

RCMX251200V

25.4

12

2

-

Type of tool holder RCMX tool holder.png

                                                         Dimension

Matched insert

h1=h2

L2

b

L1

CRDCN2020M06

20

30

20

150

RCMX06

CRDCN2525M09

25

30

25

150

RCMX09

CRDCN3232P12

32

35

32

170

RCMX12

CRDCN4040S15

40

38

40

250

RCMX15

CRDCN5050T20

50

38

50

300

RCMX20


Inquiry
