High Frequency Induction Welding Machine

2017.12.07More SuperHard Products Co., Ltd22

Introduction of high frequency induction welding machine

The high frequency induction heating machine uses a series resonant circuit , the resonant output low voltage , high current frequency power by high frequency transformer.

High Frequency Induction Welding Machine

PCD/ PCBN inserts welding operating process

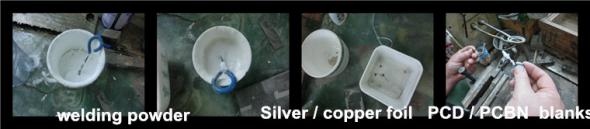

Step 1: welding Preparation

Welding powder, Silver / copper foil , pcd / pcbn blanks, cutter body .

Between the cutter body and pcd and pcbn blanks put into the Silver / copper foil and Silver/ copper powder .

*CBN Inserts With Copper Foil , 800~900℃

*PCD inserts with Silver foil , 750℃

welding PCD and PCBN inserts

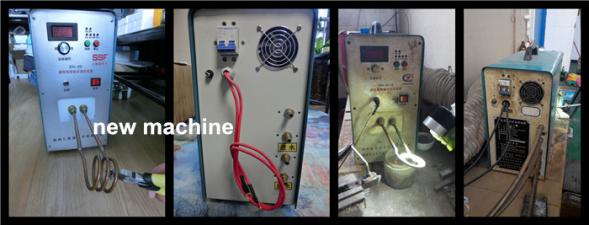

Step 2 : high frequency induction welding machine

high welding machine

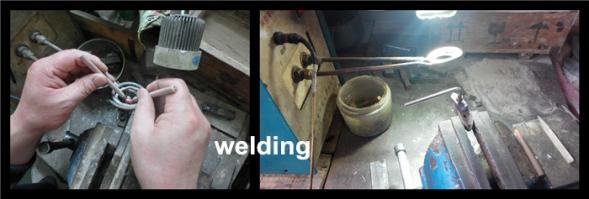

Step 3 : welding

Opening the water and electricity of high-frequency welding machine . Then opening the panel. Putting the cutter body into the sensor, pressing the remote control switch, starting heating. When the workpiece is heated to 830-860 ℃, copper foil melting and filling weld. Finally, pressing the "Stop" button to stop heating.

welding PCD and PCBN inserts

The advantage of the machine for welding cutting tools

* We only need to copper (or silver) welding piece put between the cutter head and the substrate can be a good place.

* The induction heating speed, high efficiency.

* Energy saving and low cost.

* The oxidation area is small.

* The full solid welding.

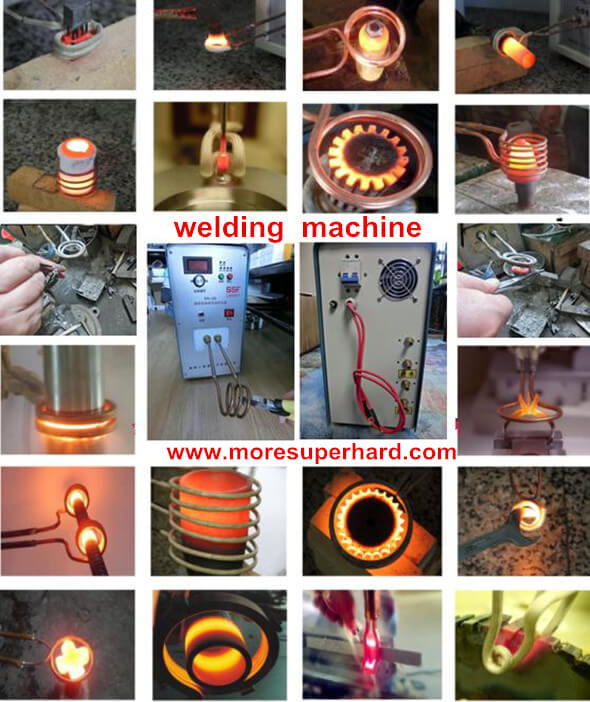

The application of induction welding machine

* Carbide saw blade welding

* Turning tools,woodworking tool welding

* Bits, cutter welding

* Valve welding, hot-rolled straight shank twist drills

* Pliers, wrenches, screwdrivers and other hand tools in the heat treatment.
