Soldering & Brazed PCBN Inserts

Soldering & Brazed PCBN Inserts

PCBN inserts are widely used to machine brake discs, engine cylinder liners, engine blocks, break drumsticks, valve seats and guides, gears and mould,etc.

Alias: soldering PCBN inserts, brazed PCBN inse
Application: machining hard ferrous metals
e-mail: sales@moresuperhard.com
Details

PCBN cutting inserts are welded directly onto the blade base to form a growing, super strong structure, without the risk of layering or cracking.

Features of soldering brazed PCBN inserts

* High chemical resistance stability

* High hardness and abrasive resistance

* Strong impact resistance

* Good fracture resistance

* High working efficiency

* Dry cutting

Applications of soldering brazed PCBN inserts

Idea for machining hard ferrous metals, such as hardened steels, gray cast iron. PCBN inserts are widely used to machine brake discs, engine cylinder liners, engine blocks, break drumsticks, valve seats and guides, gears and mould,etc.

brazed PCBN inserts for gears,mould machining

Specifications of Soldering brazed PCBN inserts

SNGA-8S soldering brazed PCBN inserts

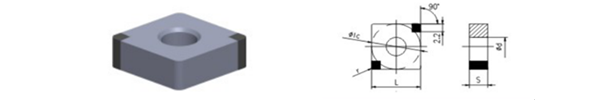

inserts type dimensions standard cutting edge
L ø i.c s r ø d
SNGA120402-8S 12 12.7 4.76 0.2 5.16 T01020,T02020,S01020,S02020
SNGA120404-8S 12 12.7 4.76 0.4 5.16
SNGA120408-8S 12 12.7 4.76 0.8 5.16
SNGA120412-8S 12 12.7 4.76 1.2 5.16
SNGA120416-8S 12 12.7 4.76 1.6 5.16

SNGA-4S brazed PCBN inserts

inserts type dimensions

standard cutting edge

L ø i.c s r ø d
SNGA120402-4S 12 12.7 4.76 0.2 5.16 T01020,T02020,S01020,S02020
SNGA120404-4S 12 12.7 4.76 0.4 5.16
SNGA120408-4S 12 12.7 4.76 0.8 5.16
SNGA120412-4S 12 12.7 4.76 1.2 5.16
SNGA120416-4S 12 12.7 4.76 1.6 5.16

SCGW-2S brazed PCBN inserts

inserts type dimension

standard cutting edge

L ø i.c s r ø d1 ø d2
SCGW09T304-2S 9.7 9.525 3.97 0.4 4.4 6 T01020, T02020, S01020,S02020
SCGW09T308-2S 9.7 9.525 3.97 0.8 4.4 6
SCGW09T312-2S 9.7 9.525 3.97 1.2 4.4 6

TNGA-6S PCBN inserts

inserts type dimensions

standard cutting edge

L ø i.c s r ø d
TNGA160404-6S 16.5 9.525 4.76 0.4 3.81 T01020,T02020,S01020,S02020
TNGA160408-6S 16.5 9.525 4.76 0.8 3.81
TNGA160412-6S 16.5 9.525 4.76 1.2 3.81
TNGA220404-6S 22 12.7 4.76 0.4 5.16
TNGA220408-6S 22 12.7 4.76 0.8 5.16
TNGA220412-6S 22 12.7 4.76 1.2 5.16

* Other Types Of brazed PCBN inserts Like WNGA,CCGW,DNGA,TNGA,SNGA,All Available Upon Request. For More Information, Please Click On The PDF Below.

specification of brazed PCBN inserts.pdf( Please Click On The Link Download)
